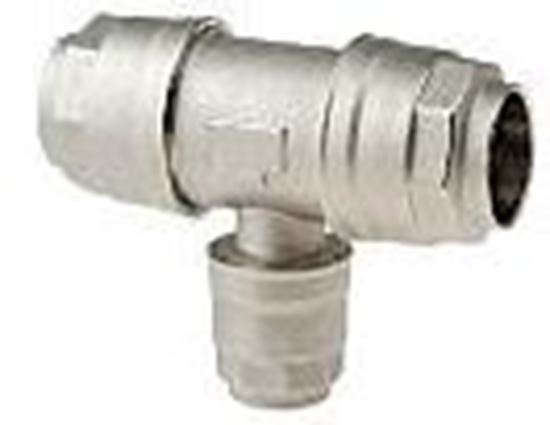

9030 RACCORDO PER CALATA

Raccordo per calata
Fluidi ammessi aria compressa, vuoto e gas inerti ( azoto, argon )
Materiale ottone nichelato
Temperatura min.-max -20°C +80°C
Pressione max 16 bar
D1D2L1L2Ch1Ch2
20 20 109 54 30 30
25 20 121,5 59 35 30
32 20 146,5 63 45 30
32 25 146,5 70 45 35
40 20 165,5 66 55 30
40 25 165,5 73 55 35
50 20 201 73 65 30
50 25 201 80 65 35
50 32 201 87,5 65 45
9030 RAC. T DIA mm. 20-20
Cod.: 0190302020
9030 RAC. T DIA mm. 25-20
Cod.: 0190302520
9030 RAC. T DIA mm. 32-20
Cod.: 0190303220
9030 RAC. T DIA mm. 32-25
Cod.: 0190303225
9030 RAC. T DIA mm. 40-20
Cod.: 0190304020
9030 RAC. T DIA mm. 40-25
Cod.: 0190304025
9030 RAC. T DIA mm. 50-20
Cod.: 0190305020
9030 RAC. T DIA mm. 50-25
Cod.: 0190305025
9030 RAC. T DIA mm. 50-32
Cod.: 0190305032
