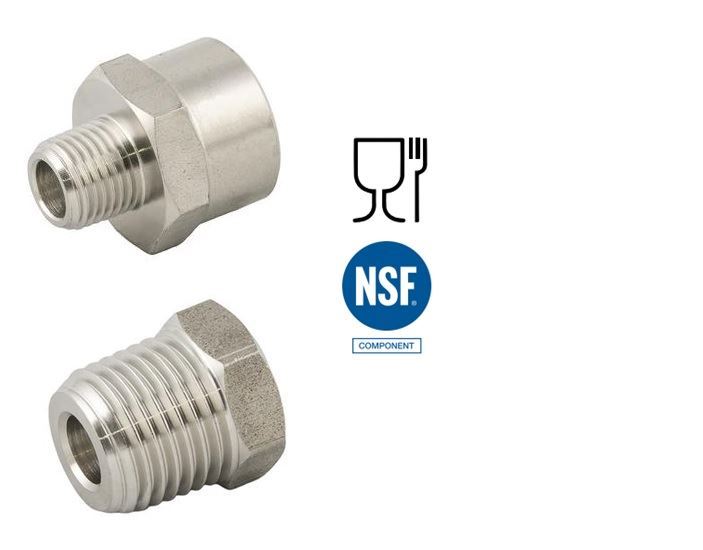

8302 RIDUZIONE INOX 316L

Riduzione conica inox 316

Materiale inox 316L alimentare

Temperatura min.-max. –20 °C +200 °C
Pressione min. –0,99 bar
Pressione max. 120 bar
Fluidi compatibili aria compressa, acqua potabile e fluidi
alimentari
Filettatura gas conica conforme ISO 7.1

Cod.	A	A1	B	L	CH
8302/2	1/8	1/4	7,5	22	17
8302/5	1/4	1/8	11	16	14
8302/7	1/4	3/8	11	27	22
8302/8	1/4	1/2	11	30	24
8302/9	3/8	1/8	11,5	16,5	17
8302/10	3/8	1/4	11,5	16,5	17
8302/12	3/8	1/2	11,5	30,5	24
8302/14	1/2	1/4	14	19,5	22
8302/15	1/2	3/8	14	19,5	22
8302/17	1/2	3/4	14	35	32
8302/19	3/4	1/2	16,5	23,5	27

8302/2 RID. INOX 1/8-1/4

Cod.: 01830202

8302/5 RID. INOX 1/4-1/8

Cod.: 01830205

8302/7 RID. INOX 1/4-3/8

Cod.: 01830207

8302/8 RID. INOX 1/4-1/2

Cod.: 01830208

8302/9 RID. INOX 3/8-1/8

Cod.: 01830209

8302/10 RID. INOX 3/8-1/4

Cod.: 01830210

8302/12 RID. INOX 3/8-1/2

Cod.: 01830212

8302/14 RID. INOX 1/2-1/4

Cod.: 01830214

8302/15 RID. INOX 1/2-3/8

Cod.: 01830215

8302/17 RID. INOX 1/2-3/4

Cod.: 01830217

8302/19 RID. INOX 3/4-1/2

Cod.: 01830219
